W200 : Weight indicators
| |
|
| |
| W200 : Base |
| W200-C : Carico / Load |
| W200-S : Scarico / Unload |
| W200-3 : 3 Prodotti / 3 Products |
| *W200-6 : 6 Prodotti / 6 Products |
| *W200-14 : 14 Prodotti / 14 Products |
| |
 |
| |

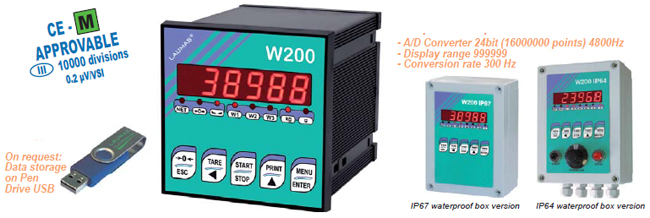

| Weight Indicator in DIN box (96 x 96 x 130 mm, drilling template 91x91mm) for panel mounting. IP54 front panel protection. Six-digit red LED semialphanumeric display (14 mm h), 7 segment; 8 alarm LED. Five-key membrane keyboard. Real-time clock with buffer battery. |
| *Models 6-14 PRODUCTS include 8-relay modules. |
| - IP67 waterproof polycarbonate box version: Dimensions 180 x 130 x 77 mm. Four fi xing holes Ø 4 mm (centre distance 163 x 113 mm). |
| - IP64 waterproof polycarbonate box version: Dimensions 180 x 130 x 77 mm. Four fi xing holes Ø 4 mm (centre distance 163 x 113 mm); provided with an external selector switch to select the formula (EC option); four PG9 cable glands; Sart and Stop buttons. |
| Two serial ports (RS232 and RS485) for connection to: |
| - PC/PLC up to 32 instruments (max 99 with line repeaters) by ASCII Laumas protocol (compatible with W60000 only for W200BASE) or ModBus RTU. |
| - Printer. |
| Optional integrated output: Profi bus DP, DeviceNet, CANopen, Profi net IO, Ethernet/IP, Ethernet TCP/IP ( connectable to your smartphone, tablet, etc.. via web ), Modbus/TCP. |
| THEORETICAL CALIBRATION is performed via the keyboard. REAL CALIBRATION with linearization up to 5 points. |
| |
| |
POWER SUPPLY and CONSUMPTION |
12 - 24VDC +/-10% ; 5W |
| |
NUMBER OF LOAD CELLS IN PARALLEL and SUPPLY |
max 8 ( 350 ohm ) ; 5VDC / 120 mA |
| |
LINEARITY/ LINEARITY OF THE ANALOG OUTPUT |
< 0.01% Full Scale ; < 0.01% F.S. |
| |
THERMAL DRIFT / THERMAL DRIFT OF THE ANALOG OUT. |
< 0.0005 % F.S./°C < 0.003 % F.S./°C |
| |
A/D CONVERTER |
24 bit (16000000 points) 4.8kHz |
| |
MAX DIVISIONS (with measure range: +/- 10mV =2mV/V) |
± 999999 |
| |
MEASURE RANGE |
± 39 mV |
| |
MAX LOAD CELL’S SENSITIVITY |
± 7 mV/V |
| |
MAX CONVERSIONS PER SECOND |
300 conversions/sec. |
| |
DISPLAY RANGE |
- 999999 ; + 999999 |
| |
DECIMALS / DISPLAY INCREMENTS |
0 - 4 / x 1 x 2 x 5 x 10 x 20 x 50 x 100 |
| |
DIGITAL FILTER / CONVERSION RATE |
0.012 - 7 sec / 5 - 300 Hz |
| |
LOGIC OUTPUTS (relays) |
N. 5 - max 115 VAC ; 150 mA
(N. 4 - Analog output versions) |
| |
LOGIC INPUTS |
N. 3 - optoisolated 5 - 24 VDC PNP
(N. 2 - Analog output versions) |
| |
SERIAL PORTS |
RS232, RS485 |
| |
BAUD RATE |
2400, 4800, 9600, 19200, 38400, 115200 |
| |
HUMIDITY (condensate free) |
85% |
| |
STORAGE TEMPERATURE |
-30°C + 80°C |
| |
WORKING TEMPERATURE |
-20°C + 60°C |
| |
WORKING TEMPERATURE (CE-M APPROVED) |
-10°C + 40°C |
|
